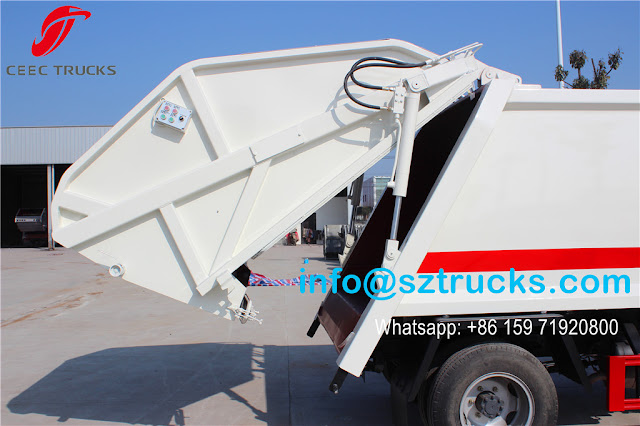

The rubbish box can be hanged up anddown; one whole up and down operation takes about 60s; the box can be detachedfrom the truck body easily. One vehicle can cooperate with several dustbins(box) to improve the ability of cycle operation, thereby improve transportationefficiency; especially it is suitable for short-distance transportation such asurban rubbish cleaning and transportation.
Equipped with dustbin, hydraulicsystem and operating system.
Equipped with two advanced double acting hydraulically cylinders.
Garbage truck: compression garbagetruck, dump type garbage truck, self-charging & self-discharging garbagetruck, swing arm garbage truck, etc., widely used in municipal administration,environmental sanitation department. Adopt TIER-III chassis.
Compression garbage truck: tankcapacity from 3m3 ~ 20m3;
Self-charging & self-discharginggarbage truck: tank capacity from 5m3 ~ 20m3;
Dump type garbage truck: capacity from5m3 ~ 15m3.
1. The dustbin is used of 5mm Q235A steel, moretypes and more specification to meet various customers’ need in differentregions.
2. Compressed density 200-400kg/m3 can be compressedto a garbage density 400-600kg/m3, improve transport efficiency.
3. Designed sewage collecting box in the bottomof fill device, the sewage directly flow into the box, avoid to re-pollution.
4. Hydraulic
system is used of two typesseparate forms of hydraulic control,
electric control and manual control,operation is more simple and
convenient.
| Items | Descriptions | Specifications and types |
| General | Truck Brand | CEEC TRUCKS |
| Chassis Brand | DongFeng | |
| Approx. Dimension | 6470*2050*2560 mm | |
| GVW./Kerb Wt. | 6495 / 5365 kg | |
| Cab | Cab Capacity | 3 persons' seat |
| Air Conditioner | Air Conditioner is optional | |
| Drive Type | 4X2, left hand drive | |
| Chassis | Fuel Type | Diesel |
| Engine Make & Model | CHAOCHAI | |
| Power | 95 Ps / 70 KW | |
| Emission Standard | Euro II or EURO III or EURO IV | |
| Brake | Air Brake | |
| Wheelbase/No. of axle | 3300 mm / 2 | |
| Tyre Specification | 7.00-16,6.50-16,7.00R16,6.50R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Automotive metallic paint | |
| Capacity | 4CBM | |
| Structure & Function | Equipped with hermetic dustbin, hydraulic system and operating system Automatic compress and uninstall, sewage can be collected by the dump tank. Lock system is operated by machinery hydraulic system can Reduce second pollution mostly. |
|
